How do I Display MS Power BI Data?

Microsoft Power BI enables you to transform your reports into rich visualizations and display them on digital signage screens. Charts, graphs, and dashboards are often at the heart of decision-making. However, one of the hardest aspects is finding a way to communicate these in a way that is meaningful. Incorporate these metrics into digital signage displays to offer these numbers in a fresh and creative way.

Microsoft Power BI refers to a collection of cloud-based apps and services which enable organizations to manipulate information from various sources. Power BI digital signage has multiple applications. This technology allows you to organize data and process it. As a result, you can transfer data visualizations onto digital displays. Consequently, you will have a digital dashboard that displays live data.

With digital signage, you can combine the effectiveness of the communication method with the power of your reports. This feature works well with MS Office, Google Suite, and Analytics.

Benefits of Using Power BI

Many businesses use Power BI for better business analytics and reporting. Some major benefits include:

• The ability to input large amounts of data than what is possible with other business intelligence platforms
• In-built machine learning features that help you analyze data and identify valuable trends, and make educated forecasts
• Powerful templates for visualizing data which improves data analysis
• Personalization features that enable you to create data models and dashboards to access data quickly
• Ability to set up alerts, so users remain updated on important measurements and metrics
• An intuitive interface that makes it easier to navigate and user-friendly than Excel spreadsheets

What You’ll Need:

• A compatible digital signage player e.g. Mvix, BrightSign, etc.
• Mvix CMS Software with a supported feature package
• Internet Connectivity
• Access to the MS Power BI Content App
• Requires Chrome Version 94 or newer

Creating Microsoft Power BI Dashboards/Reports

To create Dashboards for use on the system, please refer to this guide.

Applying Non-Authenticated Microsoft Power BI media

In order to apply Public Facing, Non-Authenticated media, first, make the Dashboard/Report available as a Public URL. Then, Apply the URL to our Web URL app for Non-Authenticated display, and Assign the media to a Schedule as you normally would.

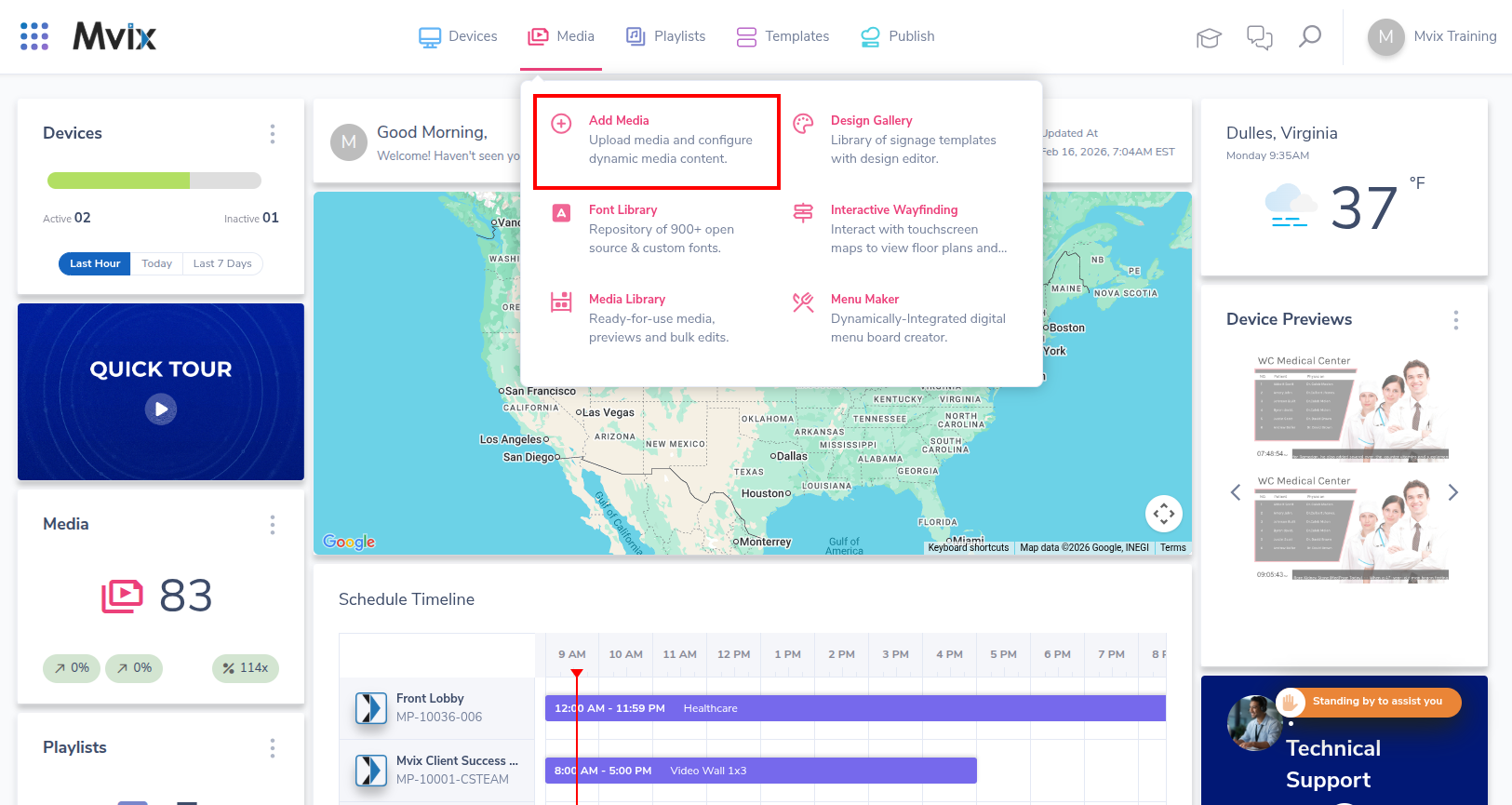

• Hover over the “MEDIA” tab and click “ADD MEDIA”.

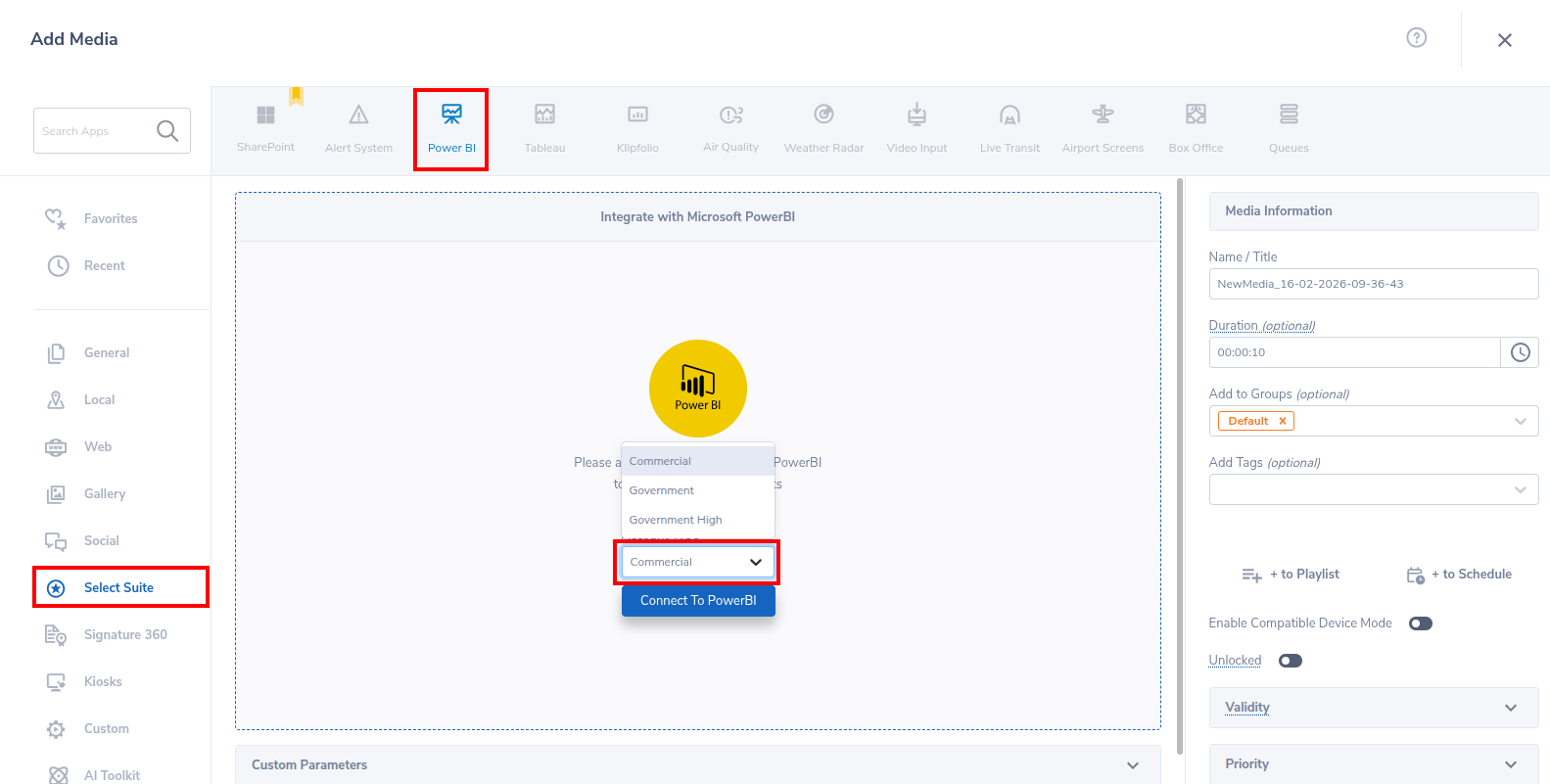

• Click on the “Premium” category.
• Click the Content App
• If this is your first time accessing your media, you will need to authenticate your account.
• Click the "Connect to Power BI" button to add your account

• If you’re Admin is uncertain how to perform the permissions change, please check this documentation from Microsoft: https://docs.microsoft.com/en-us/azure/active-directory/manage-apps/grant-admin-consent#construct-the-url-for-granting-tenant-wide-admin-consent

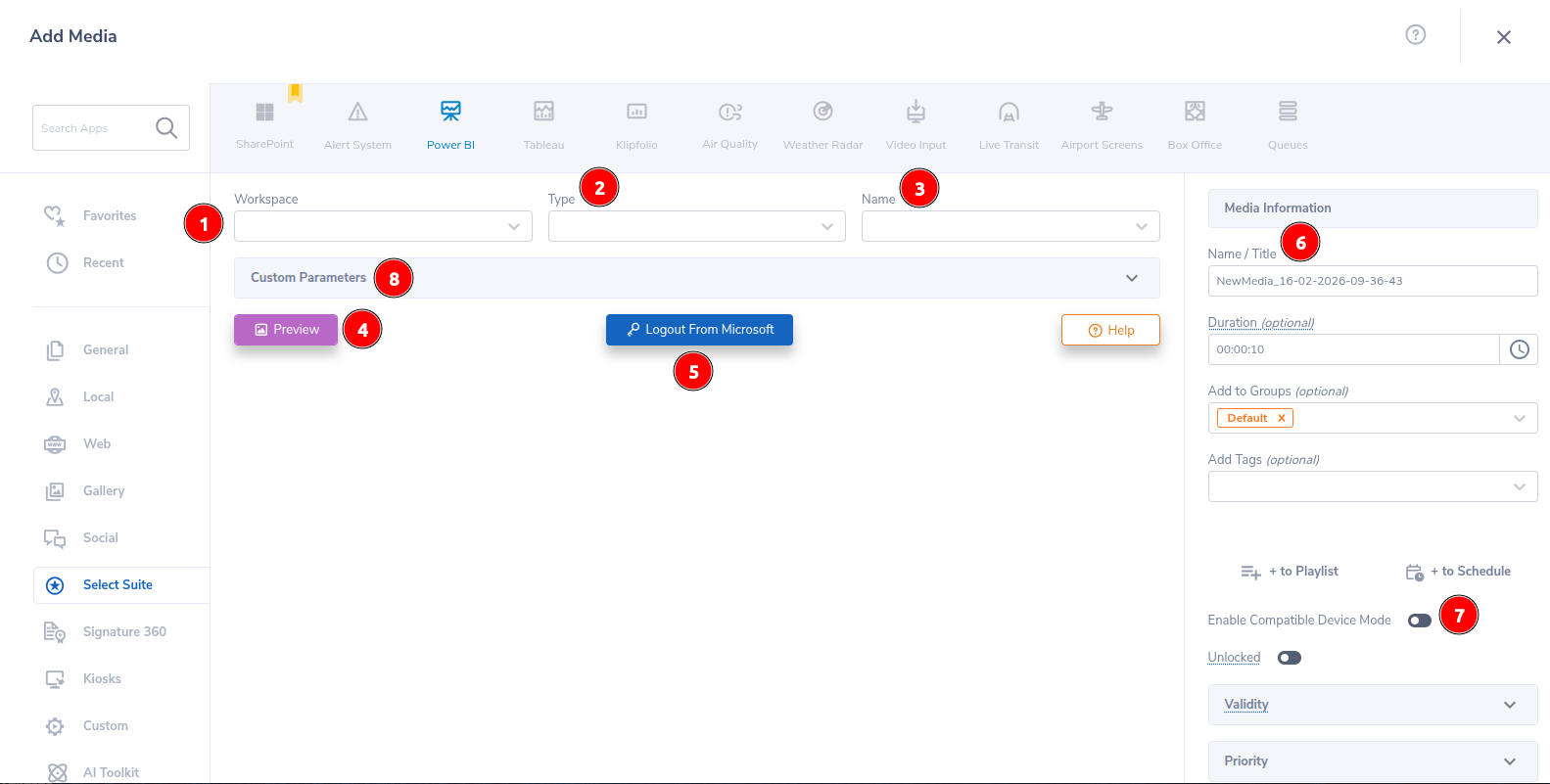

• On the Mvix CMS, you'll first have to (1) choose the workspace you'd like to pull dashboards or reports from.
• Then, (2) select if you would like to display a dashboard or a report.
• After that, (3) click the dropdown to view a complete list of your dashboards/reports and click on the one you would like to display.
• Clicking (4)"Preview" will show you what it will look on your displays. You can also (5) click "Logout From Microsoft" to logout on Mvix CMS and change accounts.
• Once you are satisfied with the setup & preview, be sure to (6) name your media something that will be easy to identify.
• If you are using an older version of Chrome (Pre-94), you can enable compatible device mode to help display your Power BI data.
• Lastly, (7) click "Save Media" to save your dashboard/report to the media library.
